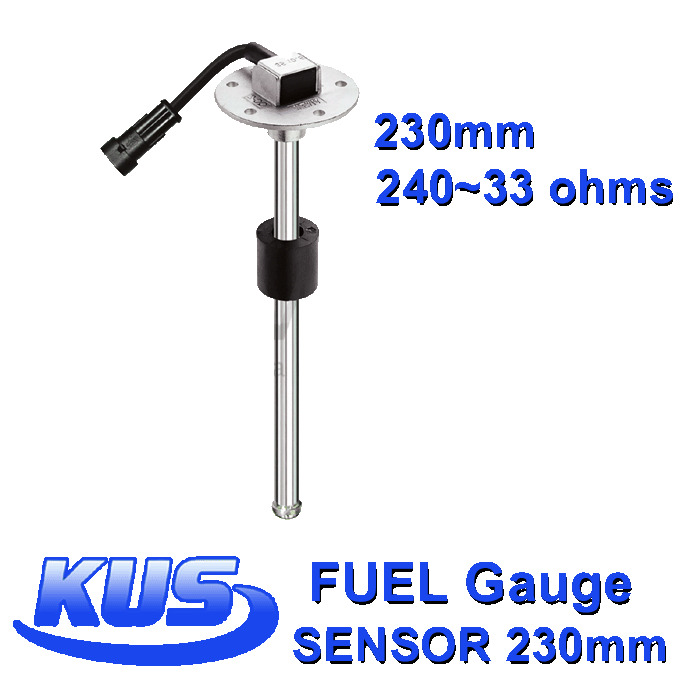

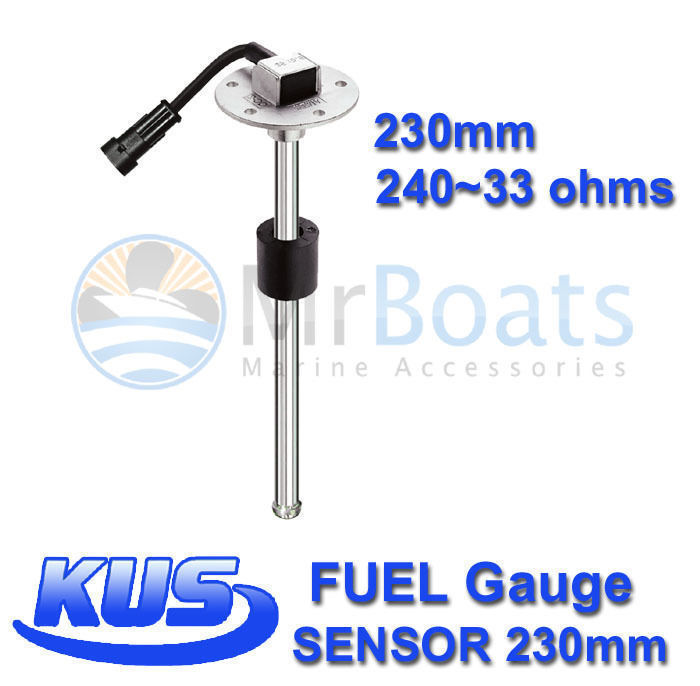

ECMS FUEL GAUGE METER SENDER

230mm

240~33Ω 12V

These Fuel / Water gauge senders have no mechanically moving parts so they can provide accurate tank level monitoring for many years of trouble free use.

SUS316 Stainless Steel construction with reed sensors spaced every 25mm. Perfectly suitable for Water, Fuel (Diesel, Gasoline, Ethanol blends, etc. NOT recommended for Black-Water Tanks. Standard Output from 33-240 Ohm

Features:

Widely used on Marine, truck, generators/gen set, bus and automotive for fuel level detection

OEM quality.

Widely used in fuel, water, kerosene and chemical tanks

 Reed switch, steady output signal

 Anti-vibration,Stronge, Advanced corrosion resistance

 Resolution range: 10 to 40mm

 High quality fuel level senser

 Economical level sensing solution, long service lifespan

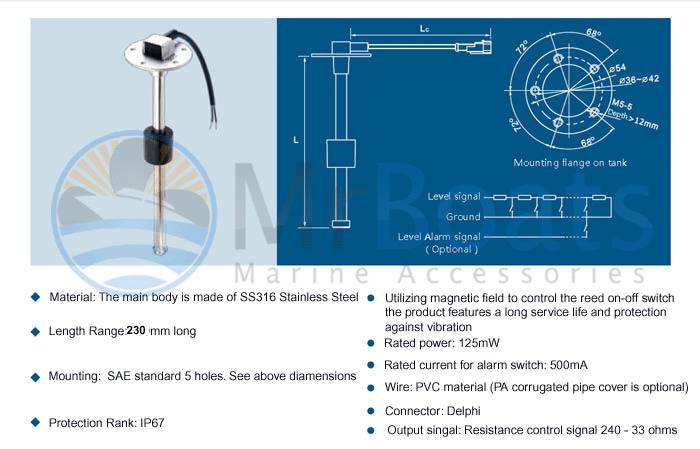

 photo Fuel Sender Specs 450 Mr Boats copy_zpsgpm46qjp.gif

Specifications:

  • Material: SUS316 Stainless Steel
  • Length range: 230mm
  • Assembly: SAE standard 5 holes
  • Mounting: 5 pieces of M5 screws and 2 mm thick NBR gasket
  • Wire ends: No connector. Bare wires for multiple uses according the customer requirements
  • Supply Voltage: 10 to 32Volts
  • Output signal: Resistance range 240 - 33Ω
  • Resolution range: 10 to 40mm
  • Operating temperatures: -40 to 85°C
  • Protection rank: IP67

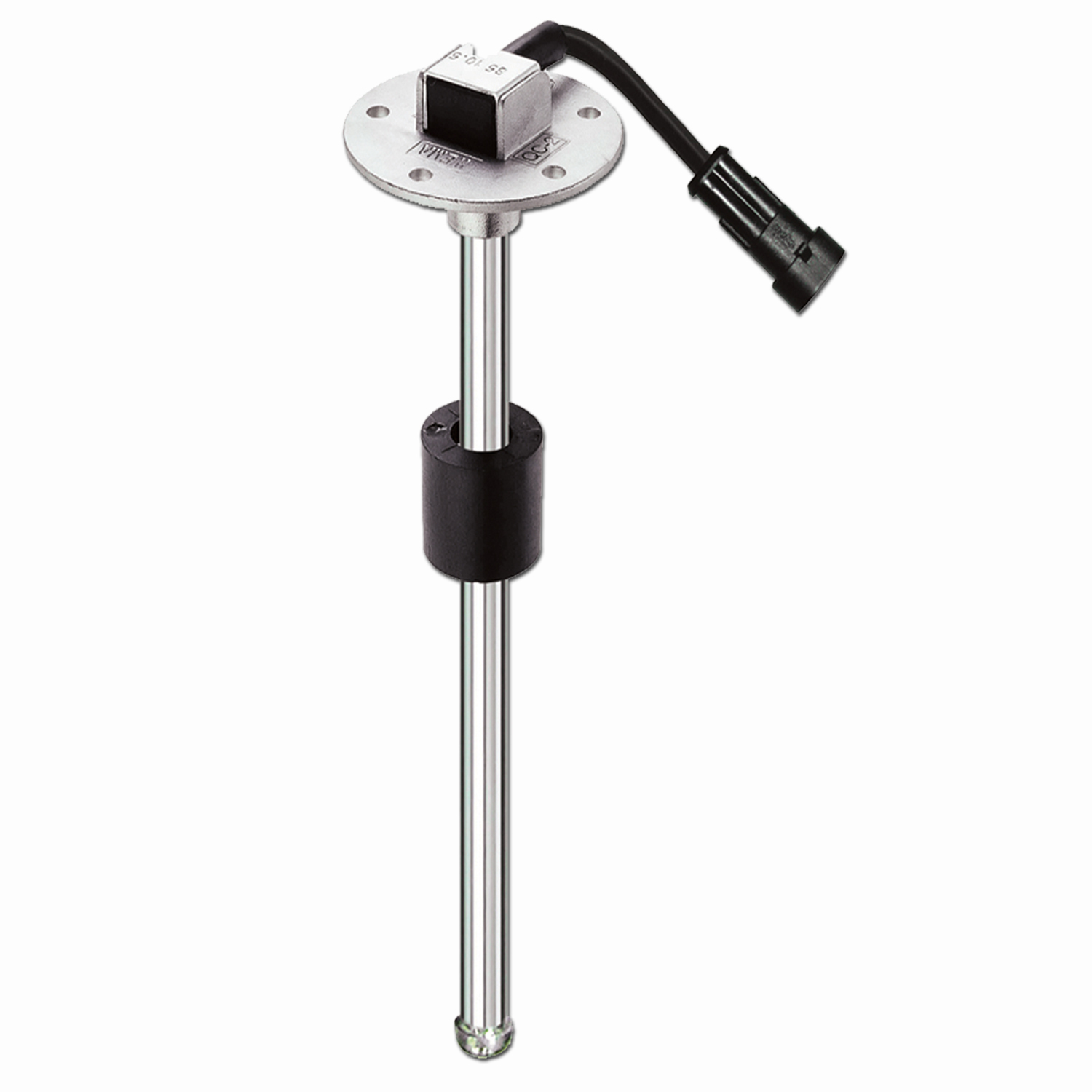

Please Note: There is no cable end connection on wires like in the picture. We have removed this and only have bare end wires to suit more applications.

Whats in the box:

  • 1 X Fuel Gauge Sender
  • 230mm
  • 240~33Ω
  • 12V
SKU 860-00568
Model # 860-00568
Brand ECMS
Artist / Author ECMS Fuel Gauge Sender 230mm 240 33 12V Boat Tank Level Meter Water Marine Part 860-00568
Shipping Weight 0.1500kg
Shipping Width 0.070m
Shipping Height 0.240m
Shipping Length 0.070m
Unit Of Measure ea
Type ECMS Fuel Gauge Sender 230mm 240 33 12V Boat Tank Level Meter Water Marine Part 860-00568
Format ECMS Fuel Gauge Sender 230mm 240 33 12V Boat Tank Level Meter Water Marine Part 860-00568
